What's it for?

Postby SilverShadow » February 9th, 2011 03:45 AM

Got my car cleaned and the guy bumped off curved plastic panel on front passengers' side way in corner. I saw a white (not green) connector fastened to the side body. What is it for?
'92 LX Wagon-Steve - STOLEN (9/3/12)
'92 LX Wagon-Steve-New
2000 EX Coupe -Joe
ACCORDS ALL THE WAY!

User avatar
SilverShadow
has the most posts !
Posts: 4677
Joined: March 13th, 2005 04:03 PM
Location: Reseda, California

Re: What's it for?

Postby SilverShadow » February 15th, 2011 12:46 AM

Do I need to post a picture, cause I've gotten no responses. It looks like it could be a test plug? I've done code checks before and that connector is green and mostly under glove ...this is fastened to right body side.
'92 LX Wagon-Steve - STOLEN (9/3/12)
'92 LX Wagon-Steve-New
2000 EX Coupe -Joe
ACCORDS ALL THE WAY!

User avatar
ex-r-wagon
Ruler of Wagons !
Posts: 1299
Joined: November 13th, 2000 08:00 AM
Location: Vancouver, BC
Contact:

Re: What's it for?

Postby ex-r-wagon » February 15th, 2011 06:40 PM

Picture would help + the wire colors (main/stripe, ie. Red with white stripe) and the number of wires.
'91 Red EX-R wagon with ALL the factory options. '96 Green Lx wagon with an H22a 5 speed! What's better than one wagon, two wagons!

User avatar
SilverShadow
has the most posts !
Posts: 4677
Joined: March 13th, 2005 04:03 PM
Location: Reseda, California

Re: What's it for?

Postby SilverShadow » February 15th, 2011 11:04 PM

I'll remove the panel, take a picture, and post it tomorrow.
'92 LX Wagon-Steve - STOLEN (9/3/12)
'92 LX Wagon-Steve-New
2000 EX Coupe -Joe
ACCORDS ALL THE WAY!

User avatar
SilverShadow
has the most posts !
Posts: 4677
Joined: March 13th, 2005 04:03 PM
Location: Reseda, California

Re: What's it for?

Postby SilverShadow » February 21st, 2011 05:22 PM

'92 LX Wagon-Steve - STOLEN (9/3/12)
'92 LX Wagon-Steve-New
2000 EX Coupe -Joe
ACCORDS ALL THE WAY!

User avatar
ex-r-wagon
Ruler of Wagons !
Posts: 1299
Joined: November 13th, 2000 08:00 AM
Location: Vancouver, BC
Contact:

Re: What's it for?

Postby ex-r-wagon » February 21st, 2011 08:56 PM

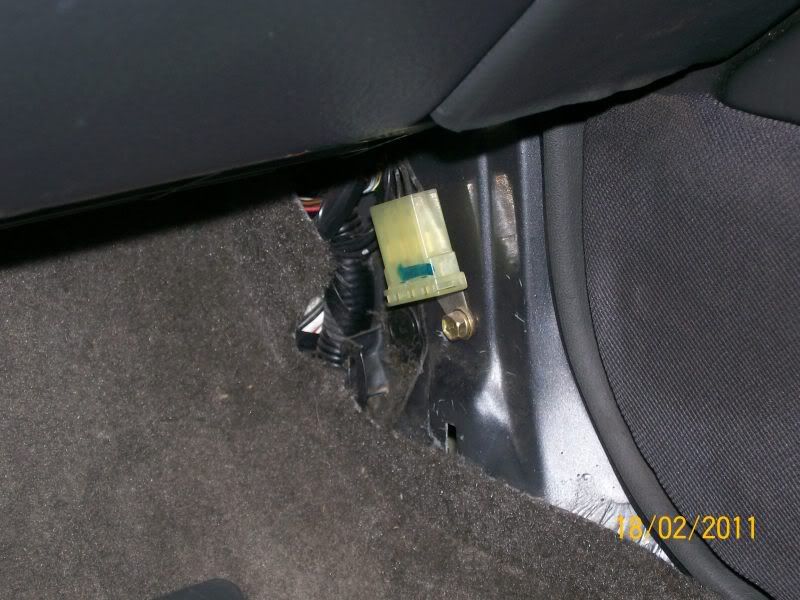

That's G402 (ground distribution connector). It brings the ground for things like the "Radio", "Glove Box light" "Horn" etc. to a common point. There are approximately 18 such connectors in a 4th Gen wagon. Honda identifies it as a "Clear body connector" (as opposed to Gray or White or Yellow).
'91 Red EX-R wagon with ALL the factory options. '96 Green Lx wagon with an H22a 5 speed! What's better than one wagon, two wagons!

User avatar
SilverShadow
has the most posts !
Posts: 4677
Joined: March 13th, 2005 04:03 PM
Location: Reseda, California

Re: What's it for?

Postby SilverShadow » February 21st, 2011 10:19 PM

I'm certain it's a "don't mess with it" item. Right?
'92 LX Wagon-Steve - STOLEN (9/3/12)
'92 LX Wagon-Steve-New
2000 EX Coupe -Joe
ACCORDS ALL THE WAY!

User avatar
ex-r-wagon
Ruler of Wagons !
Posts: 1299
Joined: November 13th, 2000 08:00 AM
Location: Vancouver, BC
Contact:

Re: What's it for?

Postby ex-r-wagon » February 21st, 2011 11:12 PM

It's a "Ground" connection. No big deal but things tend not to run properly unless well grounded. :rolleyes:
'91 Red EX-R wagon with ALL the factory options. '96 Green Lx wagon with an H22a 5 speed! What's better than one wagon, two wagons!

dj_gallito83
Ruler of Wagons !
Posts: 1312
Joined: June 22nd, 2005 03:55 PM
Location: indianapolis
Contact:

Re: What's it for?

Postby dj_gallito83 » March 2nd, 2011 09:54 PM

Does that goes the same for the 5th gens

User avatar
SilverShadow
has the most posts !
Posts: 4677
Joined: March 13th, 2005 04:03 PM
Location: Reseda, California

Re: What's it for?

Postby SilverShadow » March 30th, 2011 05:06 AM

ex-r-wagon wrote:That's G402 (ground distribution connector). It brings the ground for things like the "Radio", "Glove Box light" "Horn" etc. to a common point. There are approximately 18 such connectors in a 4th Gen wagon. Honda identifies it as a "Clear body connector" (as opposed to Gray or White or Yellow).

I forgot to say thank you. Oh ...where are my manners?
'92 LX Wagon-Steve - STOLEN (9/3/12)
'92 LX Wagon-Steve-New
2000 EX Coupe -Joe
ACCORDS ALL THE WAY!

User avatar
Inetba
Ruler of Wagons !
Posts: 1197
Joined: October 16th, 2008 10:54 AM
Location: Olathe, KS

Re: What's it for?

Postby Inetba » March 30th, 2011 09:10 AM

That's pretty awesome. I never knew about those grounding points.
